Detent Pin Heavy Duty Handle
Detent Pin Heavy Duty Handle Single Acting Ball Locking Pins
Heavy duty detent pins for secure, high-strength fastening, positioning, alignment, and quick-release industrial applications.

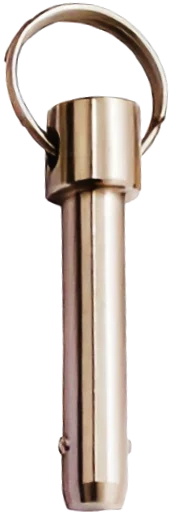

Product Visuals Heavy Duty Detent Pins
Industrial Heavy Duty Detent Pins
Our heavy duty detent pins are designed to provide secure, efficient, and repeatable fastening for demanding industrial applications. These pins are suitable for positioning, locking, alignment, and quick-release applications where higher-duty performance is required.
Choose the correct Smart Block Pins series below based on your required pin diameter. Both imperial and metric heavy duty detent pins are available.
Imperial Heavy Duty Detent Pins
Material Options for Heavy Duty Detent Pins
- Untempered stainless steel: designed for applications that require high shear strength where corrosion resistance is not important.
- Tempered stainless steel: our standard heavy duty detent pin material version for reliable industrial performance.
- Precipitation hardened stainless steel: designed for applications requiring very high corrosion resistance and the highest shear strength.
Custom Heavy Duty Detent Pins
Need a custom detent pin solution? Smart Block Pins can supply heavy duty detent pins with specific dimensions, materials, grip lengths, and application requirements. Contact our team to discuss custom heavy duty detent pins for your project.
Heavy Duty Detent Pin Material Grades
Material grade overview for Smart Block Pins heavy duty detent pins.
| SBP Parts | Grade SU Untempered stainless steel | Grade ST Tempered stainless steel | Grade SS Precipitation hardened stainless steel | |||
|---|---|---|---|---|---|---|
| Euronorm | AISI | Euronorm | AISI | Euronorm | AISI | |
| Body | 1.4057 | 431 | 1.4057 | 431 | 1.4057 | 431 |
| Handle | 1.4305 | 303 | 1.4305 | 303 | 1.4305 | 303 |
| Spring | 1.4319 | 304 | 1.4319 | 304 | 1.4319 | 304 |
| Balls | 1.4125 | 440C | 1.4125 | 440C | 1.4125 | 440C |
| Ring | 1.4310 | 302 | 1.4310 | 302 | 1.4310 | 302 |
