Smart block pin
SBPBI43PB250SV
Imperial Single Acting Push Button
Imperial
Single Acting
Push Button
The part SBPBI43PB250SV is an Imperial Single Acting Push Button. The Balls of SBPBI43PB250SV can be unlocked by pushing the activation button. Please use the standard stainless steel version:
Estimated delivery time 9-11 weeks.
General information of SBPBI43PB250SV
| Diameter (inch) | 7/16 |
|---|---|
| Grip (inch) | 2.5 |
| Pull out strength (lbf) | 500 |
We respond within 2 hours.

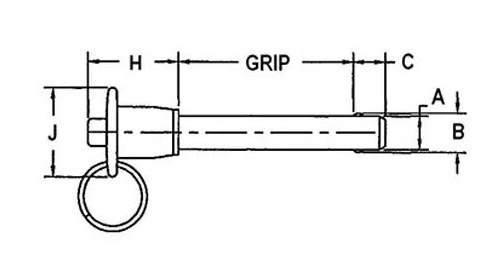

Dimensions of SBPBI43PB250SV
| ØA max/min | 0.4360 - 0.4345 |
|---|---|
| B max/min | 0.514 - 0.509 |
| C max/min | 0.380 - 0.350 |
| H | 1.16 |
| ØJ max/min | 1.400 - 1.300 |
All dimensions are in inches
Materials of SBPBI43PB250SV
| Grade SV | Passivated Stainless Steel |
|---|---|
| Body | Passivated Stainless steel 1.4301 |
| Handle | Aluminium Anodized Black |
| Button | Brass 360 |
| Spindle | Stainless steel 300 |
| Spring | SUS 304 |
| Balls | 440 C |
| Ring | Stainless steel 300 |
Instructions drilling diameter (inch)
| Nominal diameter | 0.4375 |
|---|---|
| Max pin diameter | 0.4358 |
| Min pin diameter | 0.4346 |
| Max recommended drilling diameter | 0.4425 |
| Min recommended drilling diameter | 0.4374 |
Factory New
Anemo Engineering is offering Imperial single acting ball locking pin SBPBI43PB250SV as factory new.
Certificate of Conformity
This part SBPBI43PB250SV has Certificate of Quality, Certificate of Conformity, and Certificate of Origin on request.
