Smart block pin
SBPBM12EH22SS
Metric Single Acting Push Button
Metric
Single Acting
Ergonomic Handle
This part SBPBM12EH22SS is a Metric Single Acting Push Button with a stainless steel handle. The Balls of SBPBM12EH22SS can be unlocked by pushing the activation button.
Estimated delivery time 9-11 weeks.
General information of SBPBM12EH22SS
| Diameter (mm) | 12 |
|---|---|
| Grip (mm) | 12 |
| Double shears strength (kN) | on request |
We respond within 2 hours.

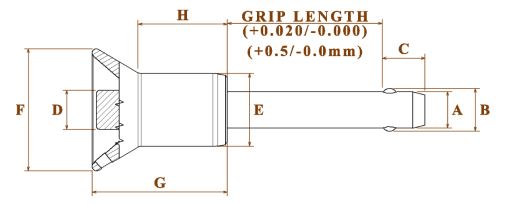

Dimensions of SBPBM12EH22SS
| ØA max/min | 11.96 - 11.92 |
|---|---|
| B | 14.45 |
| C | 10 |
| ØD max/min | 14.35 - 11.05 |
| ØE max/min | 20.32 - 15.24 |
| ØF | 33.53 - 23.62 |
| G Max | 39.62 |
| H Min | 16.76 |
All dimensions are in mm
Materials of SBPBM12EH22SS
| Grade SS | Heat Treated Stainless Steel, for applications that require a high shear strength and corrosion resistance. |
|---|---|
| Body | Heat Treated Stainless steel 1.4542 |
| Handle | 303 |
| Button | 303 |
| Shank | Stainless steel 1.4542 |
| Spring | 302 |
| Balls | 440C |
| Ring | 302 |
Instructions drilling diameter (mm)
| Nominal diameter | 12 |
|---|---|
| Max pin diameter | 11.96 |
| Min pin diameter | 11.92 |
| Max recommended drilling diameter | 12.12 |
| Min recommended drilling diameter | 12 |
Factory New
Anemo Engineering is offering Metric single acting ball locking pin SBPBM12EH22SS as factory new.
Certificate of Conformity
This part SBPBM12EH22SS has Certificate of Quality, Certificate of Conformity, and Certificate of Origin on request.
